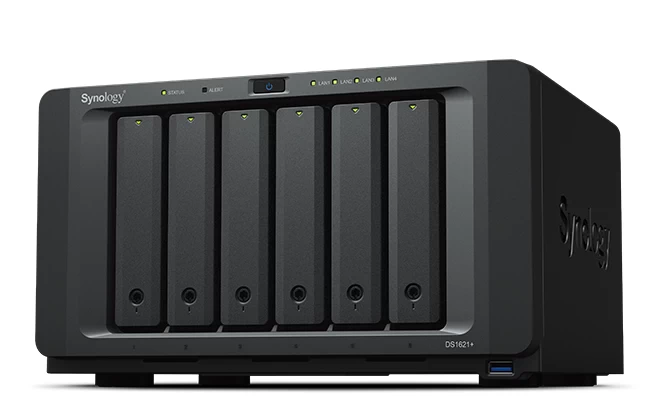

Professional Synology Hybrid RAID (SHR) Data Recovery: How We Restore Your NAS
Synology’s Hybrid RAID (SHR) is one of the most flexible and user‑friendly storage technologies on the market. It automatically mixes different drive sizes, protects against disk failures, and expands storage without complex manual configuration. But when something goes wrong - multiple drive failures, filesystem corruption, accidental removal, or a failed rebuild - SHR becomes extremely difficult to repair without professional tools.
This is where our data recovery lab steps in.
We specialize in advanced Synology SHR recovery, including SHR‑1 and SHR‑2, across all Synology NAS models. Our process is engineered to safely rebuild damaged arrays, extract data from failing disks, and restore your files even when the NAS itself cannot boot or recognize the volume.
Why Synology SHR Is Difficult to Recover
Unlike traditional RAID levels, SHR uses:
LVM (Logical Volume Manager) layers
mdadm RAID groups
Btrfs or EXT4 filesystems
Dynamic block allocation
Mixed‑size disk layouts
This means that a simple “RAID rebuild” is not enough. SHR volumes often contain multiple RAID groups stitched together, and each group must be reconstructed in the correct order before the filesystem can be repaired.
When a NAS fails, the SHR structure becomes fragmented - and attempting to rebuild it incorrectly can destroy the remaining data.
How We Recover Synology Hybrid RAID (SHR)
Below is a clear overview of how our lab handles SHR recovery safely and professionally.
1. Hardware Diagnostics and Drive Imaging
Every disk is tested individually:
Read‑error analysis
SMART diagnostics
Head and surface condition checks
Firmware module verification
If a drive is unstable, we use specialized hardware imagers to create a sector‑by‑sector clone.
This prevents further degradation and ensures the recovery is performed from safe copies, not the failing disks.
2. Reconstructing the SHR Layout
SHR is built on top of multiple mdadm RAID groups. We analyze:
RAID metadata
LVM configuration
Synology partition tables
RAID chunk sizes
Stripe order and parity rotation
We then manually reconstruct each RAID group in the correct sequence.
This step is critical — even a small mistake can corrupt the filesystem.
3. Rebuilding the Logical Volume (LVM)
Once the RAID groups are reconstructed, we rebuild the LVM structure:
PV (Physical Volume) scanning
VG (Volume Group) reconstruction
LV (Logical Volume) mapping
This restores the logical layout that Synology uses to store your data.
4. Filesystem Repair (Btrfs or EXT4)
Depending on your NAS model, SHR uses either:
Btrfs (newer models)
EXT4 (older models)
We perform:
Metadata repair
Tree reconstruction (for Btrfs)
Journal recovery (for EXT4)
Directory structure rebuilding
Our tools allow us to repair the filesystem without writing anything back to your disks.
5. Safe Data Extraction
Once the volume is rebuilt, we extract:
Shared folders
User directories
Virtual machines
Docker data
Surveillance Station recordings
iSCSI LUNs
Application databases
All recovered data is transferred to a new drive or external storage of your choice.
Common Synology SHR Failure Scenarios We Recover
We successfully restore data from:
Multiple drive failures
Failed RAID rebuilds
NAS not booting
Volume crashed / degraded
DSM update failure
Power loss during rebuild
Filesystem corruption
Accidental drive removal
Mixed‑size disk upgrades gone wrong
Water, fire, or physical damage
Even if Synology Assistant reports “Volume Crashed”, “Repair Failed”, or “No RAID Found”, your data is often still recoverable.
Why Clients Trust Us With Synology SHR Recovery
Professional hardware imagers (PC‑3000, DeepSpar, MRT)
Experience with complex SHR‑1 and SHR‑2 layouts
Safe, read‑only recovery process
Transparent pricing
No data, no charge
Support for all Synology models (DS, RS, FS series)
We also handle cases that other companies declare “unrecoverable.”
Final Thoughts
Synology Hybrid RAID is powerful, but when it fails, it requires deep technical expertise to recover safely. Our lab has years of experience restoring SHR arrays, repairing damaged RAID groups, and recovering Btrfs/EXT4 volumes without risking further data loss.
If your Synology NAS is degraded, crashed, or unreadable — turn it off immediately and contact us.
The sooner we begin imaging the drives, the higher the recovery success rate.
